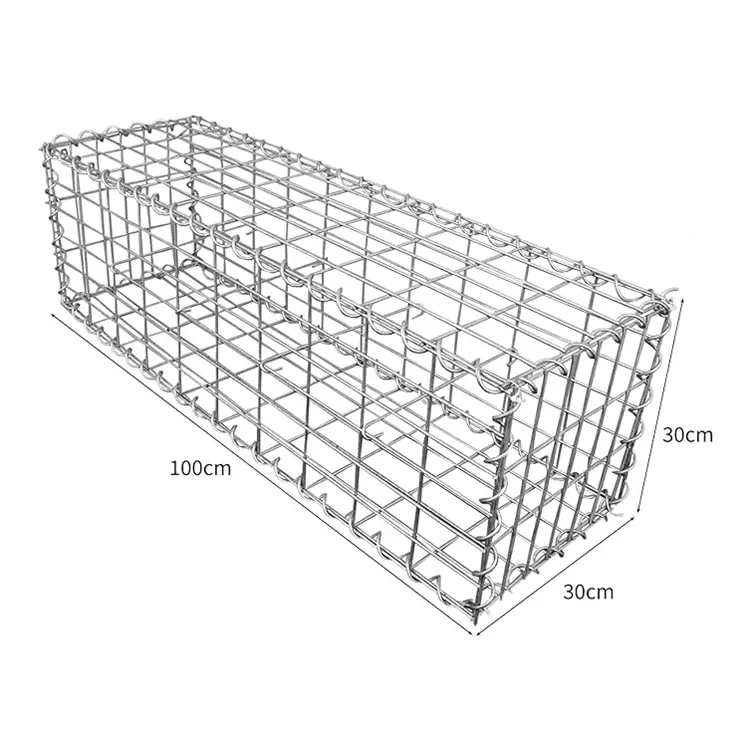

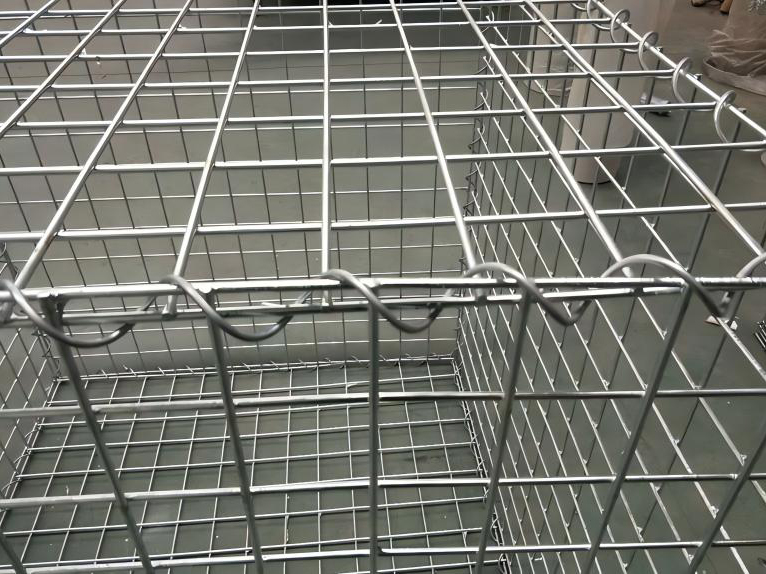

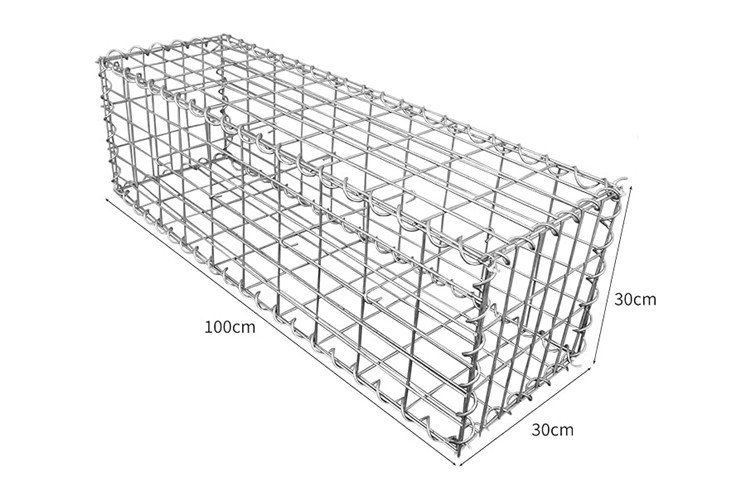

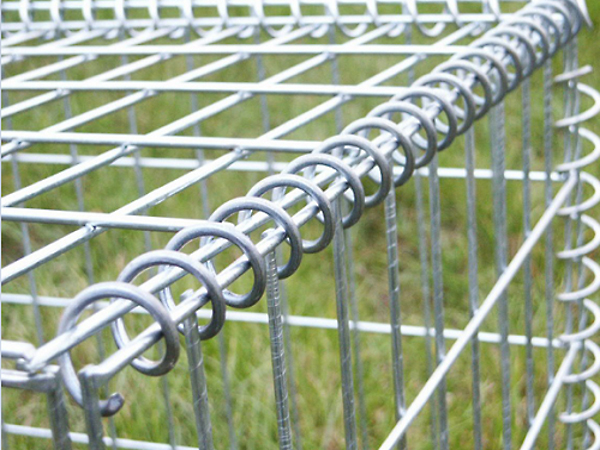

A welded gabion box is a robust mesh structure formed by assembling and compressing welded front and back panels, base panels, and diaphragms using spiral binding wire. The unit is then securely packed together with a high-strength mesh cover.
Premium Manufacturing Standards

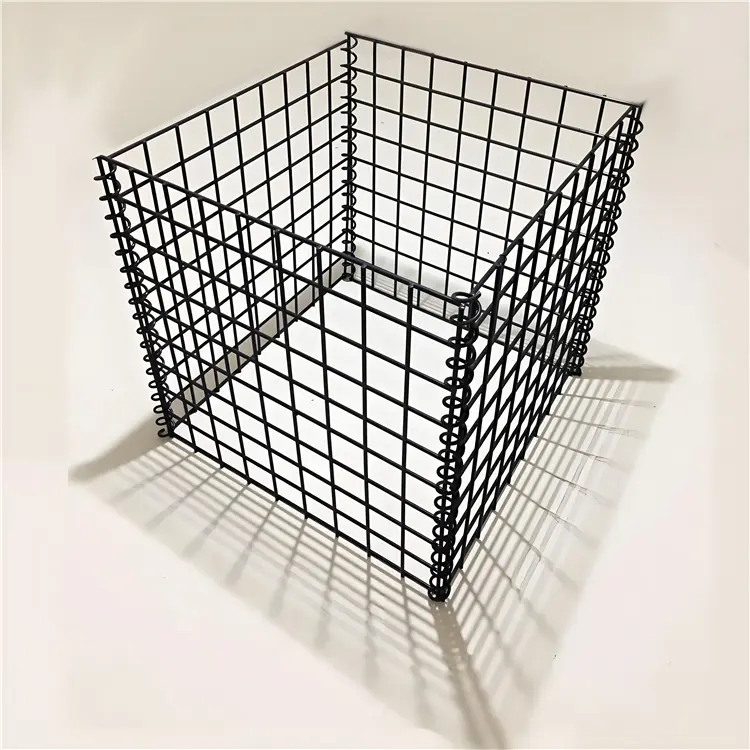

Constructed using high-quality low-carbon steel wire formed through precise automatic welding in strict accordance with BS1052:1986 standards. The surface is treated via electro-galvanization, hot-dip galvanization, and durable plastic coating, ensuring independent performance, remarkable corrosion resistance, permeability, and structural integrity.

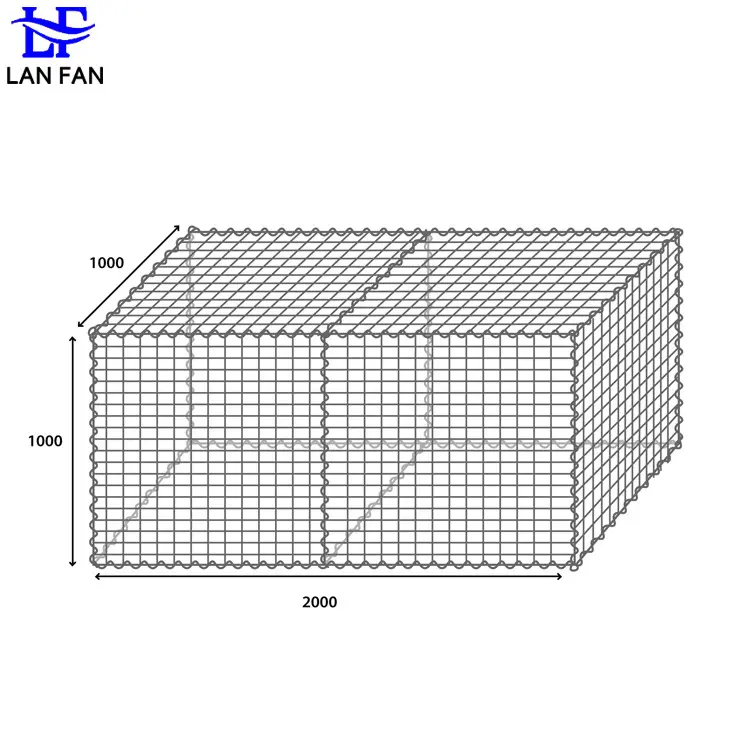

| Gabion Size (m) | Mesh Size (mm) | Wire Diameter (mm) | Surface Treatment | Tensile Strength | Zinc Coating (g/m²) |
|---|---|---|---|---|---|
| 0.5 x 0.5 x 0.5 | Square Mesh: 50x50 | 3.0 – 6.0 mm |
Hot-dip Galvanized Galfan Coating (Zinc-5% Al / Zinc-10% Al) PVC Coating |
300 – 550 MPa |
40 - 60 g/m² 220 - 300 g/m² (Heavy Zinc Coating) |
| Square Mesh: 70x70 | |||||
| Square Mesh: 100x100 | |||||
| 1.0 x 1.0 x 0.3 | Square Mesh: 150x150 | ||||
| 1.0 x 0.8 x 0.3 |
Rectangular Mesh: 30x50, 30x80, 50x80, 50x100, 50x150, 100x200 |
||||
| 1.0 x 1.0 x 0.5 | |||||
| 1.0 x 1.0 x 1.0 | |||||
| 2.0 x 1.0 x 0.3 | |||||
| 2.0 x 1.0 x 0.5 | |||||
| 2.0 x 1.0 x 1.0 | |||||
| 3.0 x 1.0 x 1.0 | |||||
| 4.0 x 1.0 x 1.0 | |||||
| * All dimensions and specifications can be customized to your specific project needs. | |||||
Material: Fabricated using premium-grade low-carbon steel wire for ultimate durability and strength.

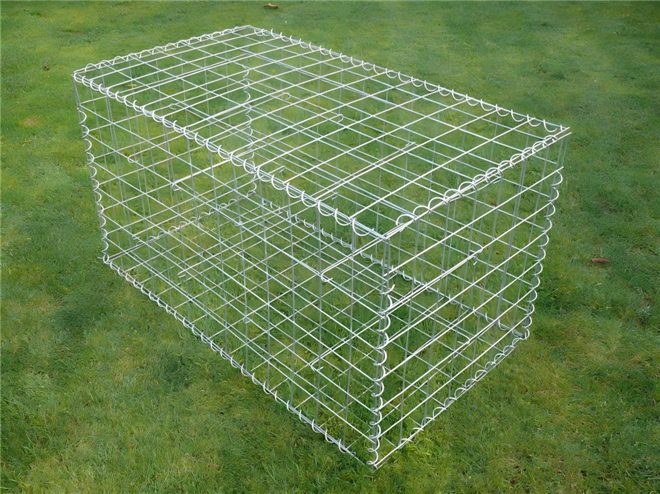

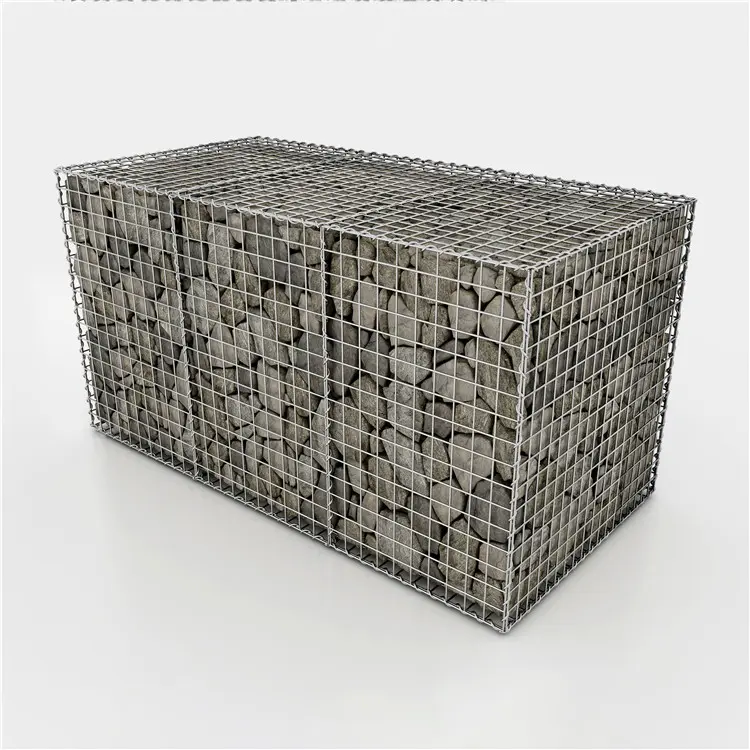

Welded gabion baskets are widely used for public park landscaping, architectural exterior wall cladding, and robust protective barrier installations. The exceptionally smooth mesh surface, durable welded joints, and rigid structure ensure a clean, flat surface after stone filling, making it a highly decorative and functional choice for slope protection and modern garden designs.
Our gabions are supplied in a highly optimized folded and compressed state. They are flat-packed and stacked neatly on pallets to save shipping space and ensure hassle-free transportation. Binding wires are delivered in coils, while the spiral connection wires are safely bound in secure bundles.
