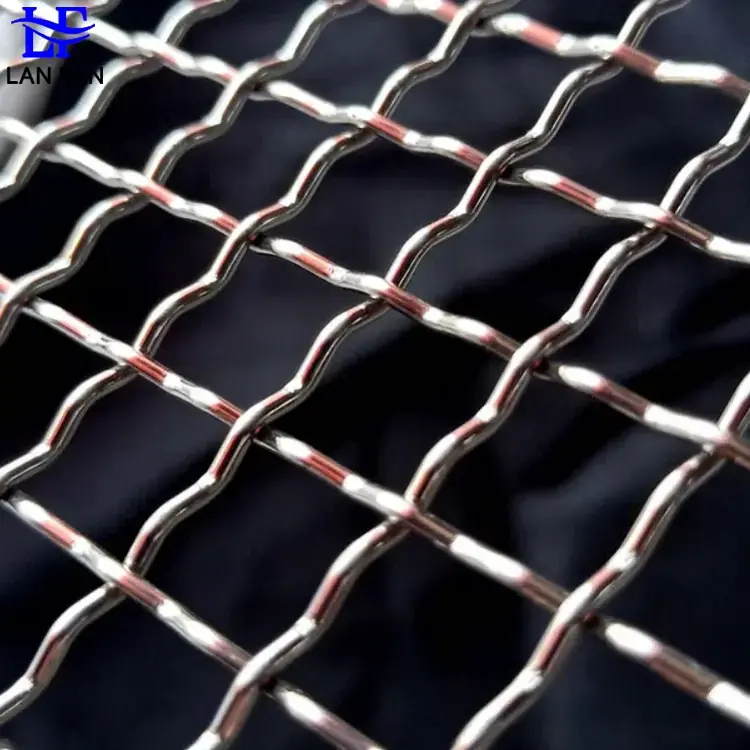

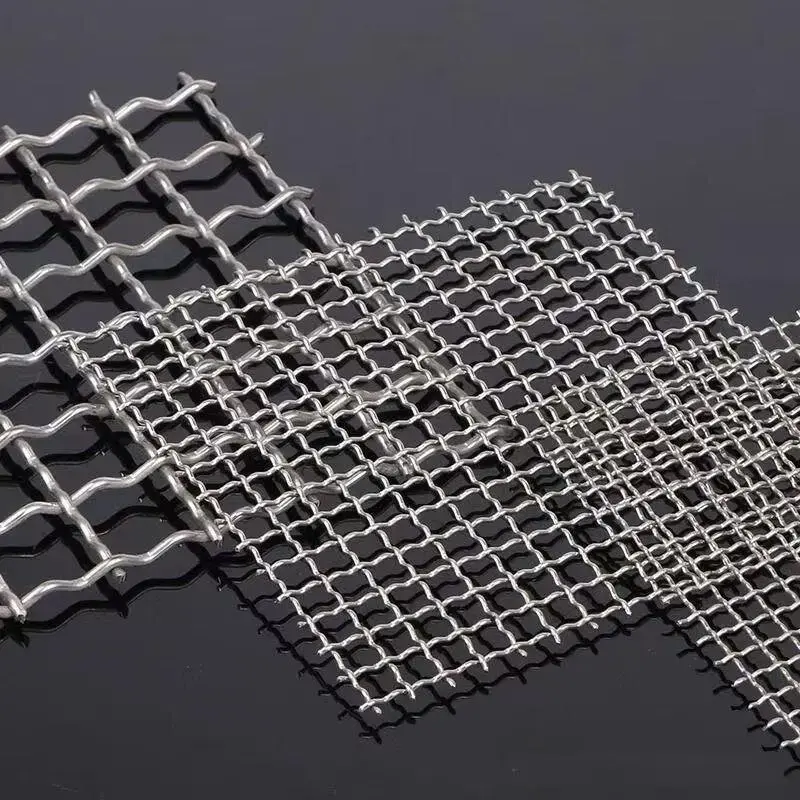

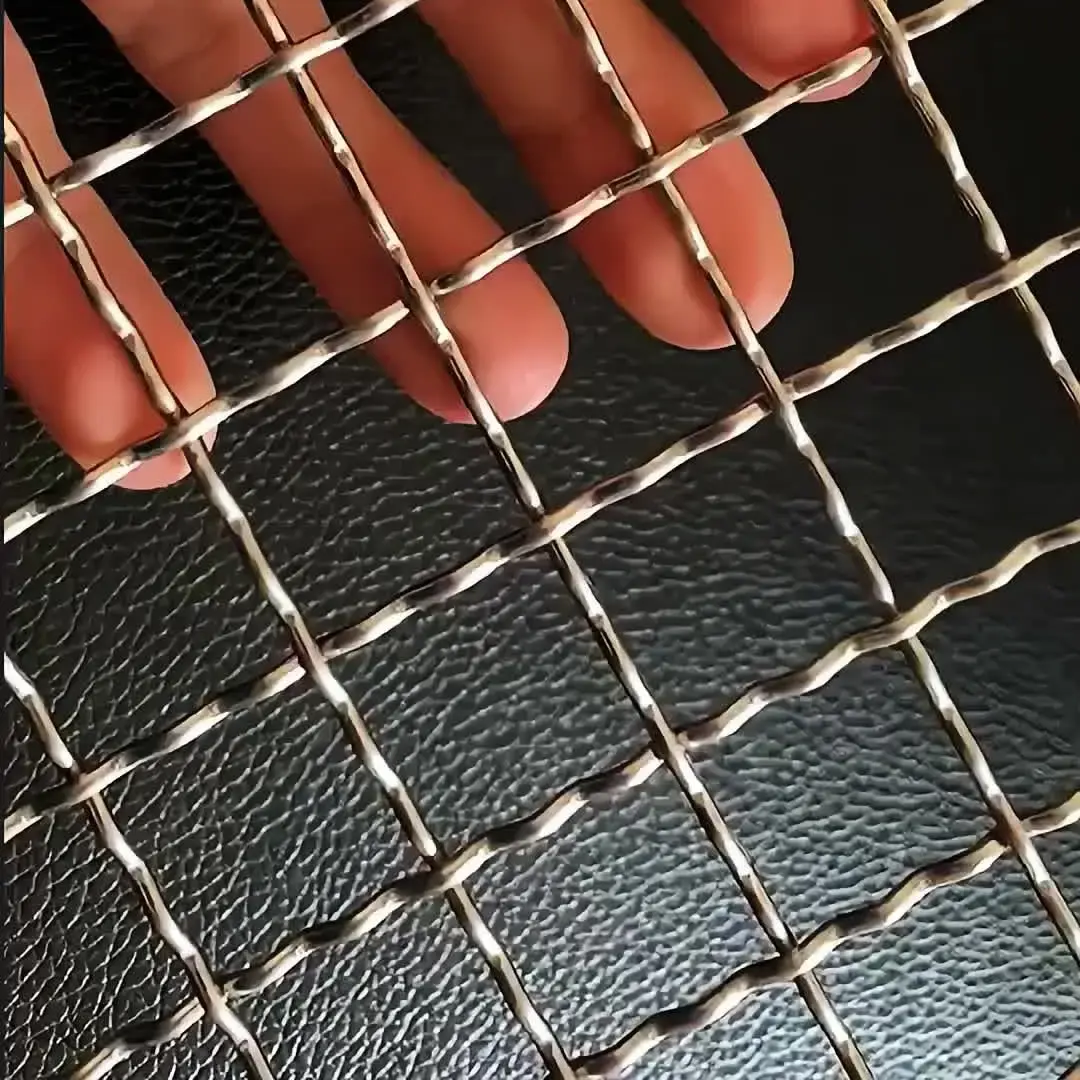

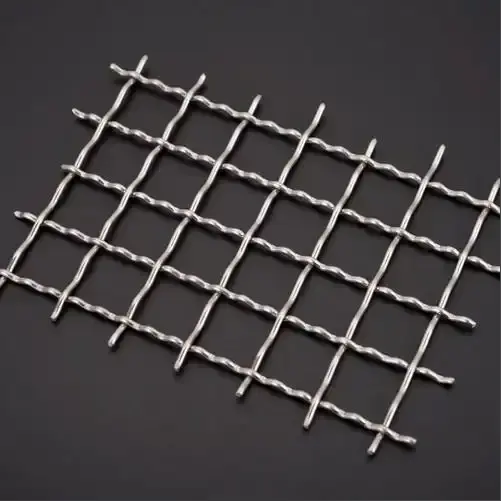

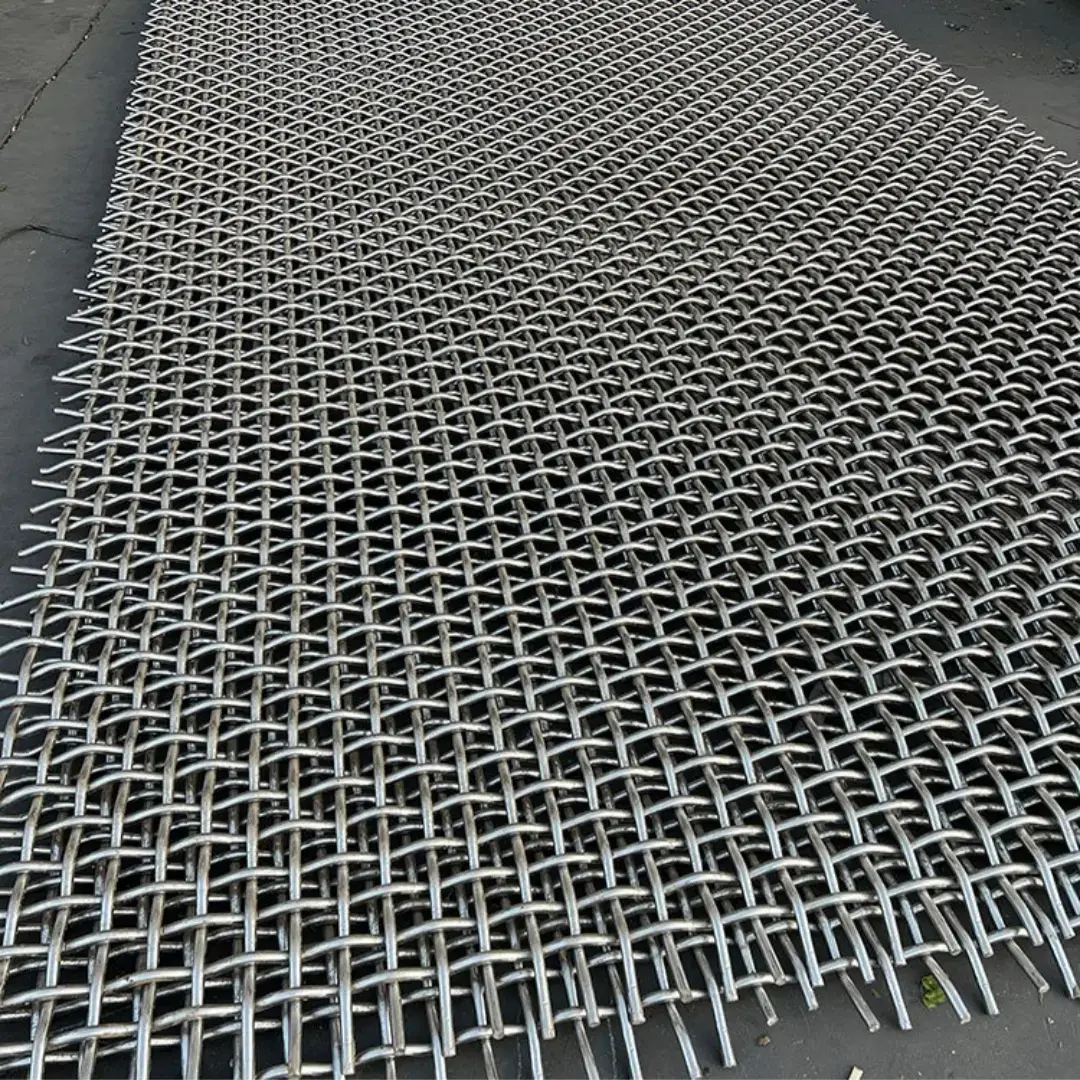

Crimped Stainless Steel Wire Mesh is a square mesh woven from different materials and different specifications of metal wire by a new type of mesh machine, which has a variety of uses. Beautiful structure, strong and durable. It is widely used, can be used in the construction industry, and is a good material for flood control and flood resistance. It can also be used in the manufacture of handicrafts, high-grade environmental garbage cans, loudspeaker net covers, and for raising chickens, ducks, geese, rabbits and zoo fences.
| Mesh | Wire Diameter | Opening | Mesh | Wire Diameter | Opening |
|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | ||
| 3 × 3 | 1.6 | 6.87 | 20 × 20 | 0.27 | 1 |
| 4 × 4 | 1.2 | 5.15 | 22 × 22 | 0.25 | 0.9 |
| 5 × 5 | 0.95 | 4.13 | 24 × 24 | 0.23 | 0.83 |
| 6 × 6 | 0.8 | 3.43 | 26 × 26 | 0.2 | 0.78 |
| 8 × 8 | 0.6 | 2.57 | 28 × 28 | 0.18 | 0.73 |
| 10 × 10 | 0.5 | 2.04 | 30 × 30 | 0.15 | 0.7 |
| 12 × 12 | 0.5 | 1.61 | 35 × 35 | 0.14 | 0.59 |
| 14 × 14 | 0.4 | 1.41 | 40 × 40 | 0.14 | 0.5 |
| 16 × 16 | 0.35 | 1.24 | 50 × 50 | 0.12 | 0.39 |
| 18 × 18 | 0.3 | 1.11 | 60 × 60 | 0.12 | 0.3 |
